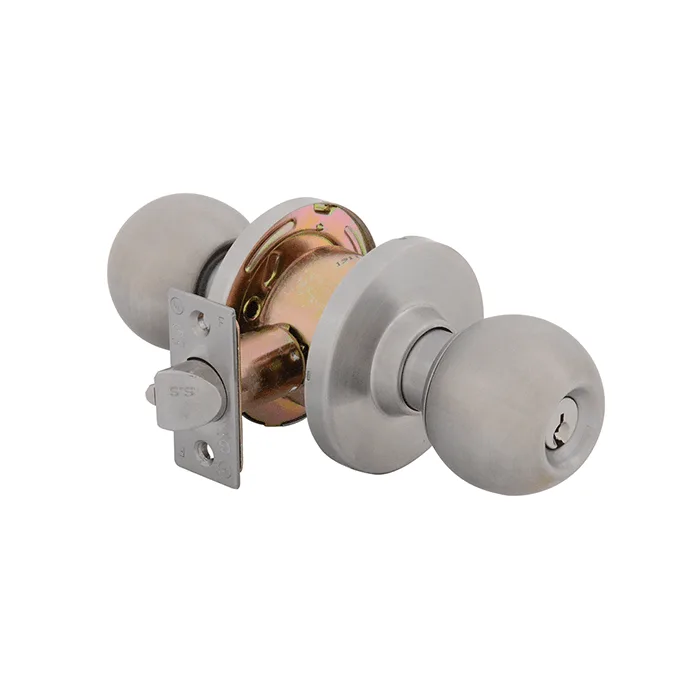

Bala Commercial Storeroom Lock Knobset 6


**Features:**

– Only opened by key from the outside & always unlocked from inside

– Concealed mounting screws

– One piece high security knob

– Can accommodate security profile PD type barrels

**Function:** Storeroom – Single Cylinder.

**Grade:** 2 Commercial Cylindrical Knobset

**Certification:** ANSI A156.2

**Fire Rating:** Fire rated for both NZ Fire Doors and Pacific Fire Doors

**Material:** Stainless Steel, Brass and Plated Steel Components

**Finish:** Stainless Steel

**Backset:** 60mm; 70mm and 127mm (95mm available on request)

**Door Thickness:** 35mm – 51mm

**Door Prep:** 54mm hole and 25mm Edge

**Rose Cover:** 75mm

**Latch:**

Faceplate – Square Corners (25.4mm x 57mm)

Bolt – Stainless Steel Powder metallurgy with 1/2″ throw (12.7mm)

**Strike:** T Strike (28.2mm x 69.5mm x 2.0mm)

**Packaging:** Box Pack only
