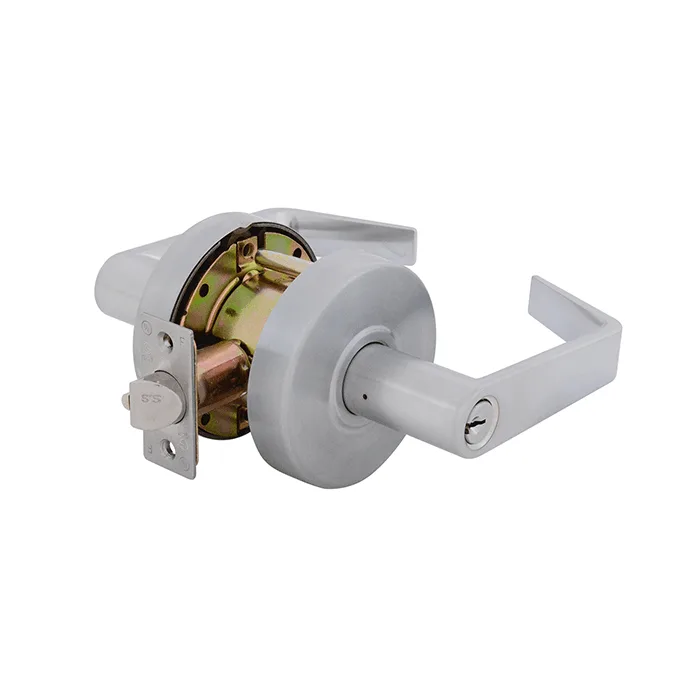

Empire Commercial Classroom Leverset – 60mm Backset

Features:

• Only opened by key from the outside & always unlocked from inside
• Anti-vandalism clutch function (lever remains active / free moving when locked)
• Removable thru-bolt, adjustable mounting plate, removable turn button
• Concealed mounting screws
• Can accommodate security profile PD type barrels

Function: Classroom

Grade: 2 Commercial Heavy Duty Cylindrical Leverset

Certification: ANSI A156.2

Fire Rating: Fire rated for both NZ Fire Doors and Pacific Fire Doors

Finish: Satin Chrome

Backset: 60mm

Door Thickness: 35mm – 51mm

Door Prep: 54mm hole and 25mm edge

Cylinder: 6 pin C4 Keyway – 3 keys supplied

Rose Cover: 85mm

Material: Brass rose with die cast zinc lever

Latch:

Faceplate – Square Corners (25.4mm x 57mm)

Bolt – Stainless Steel Powder metallurgy with 1/2″ throw (12.7mm)

Strike: T Strike (28.2mm x 69.5mm x 2.0mm)

Packaging: Box Pack only
