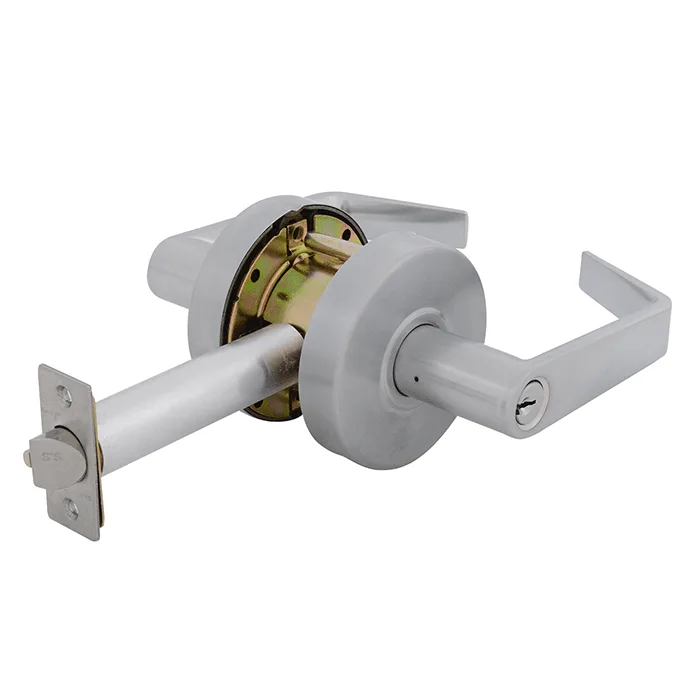

Empire Commercial Entrance Leverset - 127mm Backset

Product information

Features:

• Only opened by key from the outside & always unlocked from inside

• Anti-vandalism clutch function (lever remains active / free moving when locked)

• Removable thru-bolt, adjustable mounting plate, removable turn button

• Concealed mounting screws

• Can accommodate security profile PD type barrels

Function: Entrance

Grade: 2 Commercial Heavy Duty Cylindrical Leverset

Certification: ANSI A156.2

Fire Rating: Fire rated for both NZ Fire Doors and Pacific Fire Doors

Finish: Satin Chrome

Backset: 127mm

Door Thickness: 35mm - 51mm

Door Prep: 54mm hole and 25mm edge

Cylinder: 6 pin C4 Keyway - 3 keys supplied

Rose Cover: 85mm

Material: Brass rose with die cast zinc lever

Latch:

Faceplate - Square Corners (25.4mm x 57mm)

Bolt - Stainless Steel Powder metallurgy with 1/2" throw (12.7mm)

Strike: T Strike (28.2mm x 69.5mm x 2.0mm)

Packaging: Box Pack only
