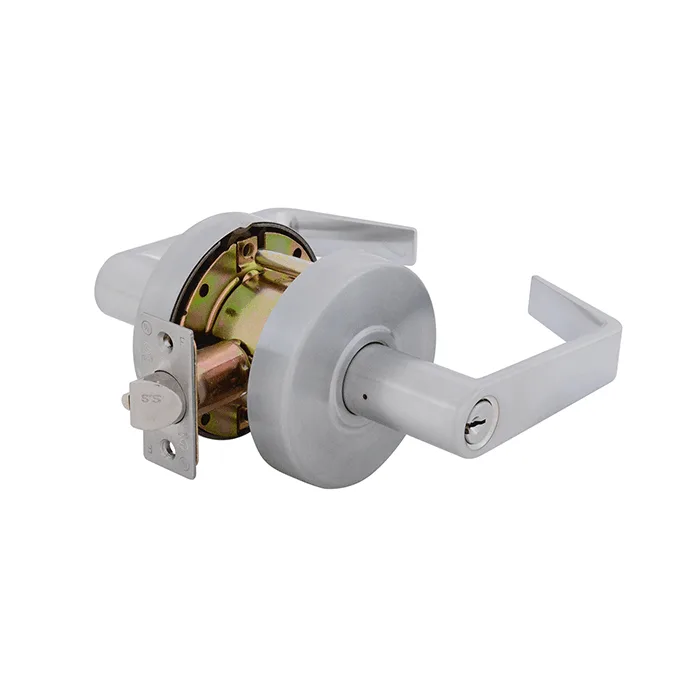

Empire Commercial Storeroom Leverset 60

**Features:**

-Only opened by key from the outside & always unlocked from inside

– Anti-vandalism clutch function (lever remains active / free moving when locked)

– Removable thru-bolt, adjustable mounting plate, removable turn button

– Concealed mounting screws

– Can accommodate security profile PD type barrels

**Functions:** Storeroom

**Grade:** 2 Commercial Heavy Duty Cylindrical Leverset

**Certification:** ANSI A156.2

**Fire Rating:** Fire rated for both NZ Fire Doors and Pacific Fire Doors

**Finish:** Satin Chrome

**Backset:** 60mm; 70mm and 127mm (95mm on request)

**Door Thickness:** 35mm – 51mm

**Door Prep:** 54mm hole and 25mm edge

**Cylinder:** 6 pin C4 Keyway – 3 keys supplied

**Rose Cover:** 85mm

**Material:** Brass rose with die cast zinc lever

**Latch:**

Faceplate – Square Corners (25.4mm x 57mm)

Bolt – Stainless Steel Powder metallurgy with 1/2″ throw (12.7mm)

**Strike:** T Strike (28.2mm x 69.5mm x 2.0mm)

**Packaging:** Box Pack only
