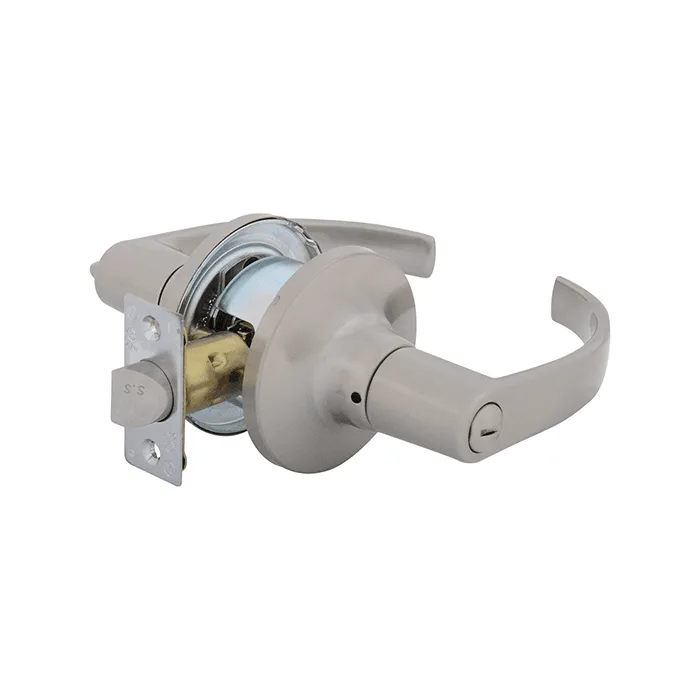

Raglan Commercial Privacy Leverset Adj

Product information

Features:

• Auto release function

• Concealed mounting screws

• Protection sleeve design

• Reversible or non-handed design

• Can accommodate security profile PD type barrel

Functions: Privacy

Grade: 2 Commercial Tubular Leverset

Certification: ANSI A156.2

Finish: Satin Nickel

Backset: 60mm - 70mm Adjustable

Door Thickness: 35mm - 51mm

Door Prep: 54mm hole and 25mm edge

Rose Cover: 75mm

Material: Satin Nickel pressure die cast zinc lever

Latch:

Faceplate - Square Corners (25.4mm x 57mm)

Bolt - Stainless Steel with Powder Metallurgy 1/2" throw (12.7mm)

Strike: D Strike (28.2mm x 69.5mm x 2.0mm)

Packaging: Box Pack only
