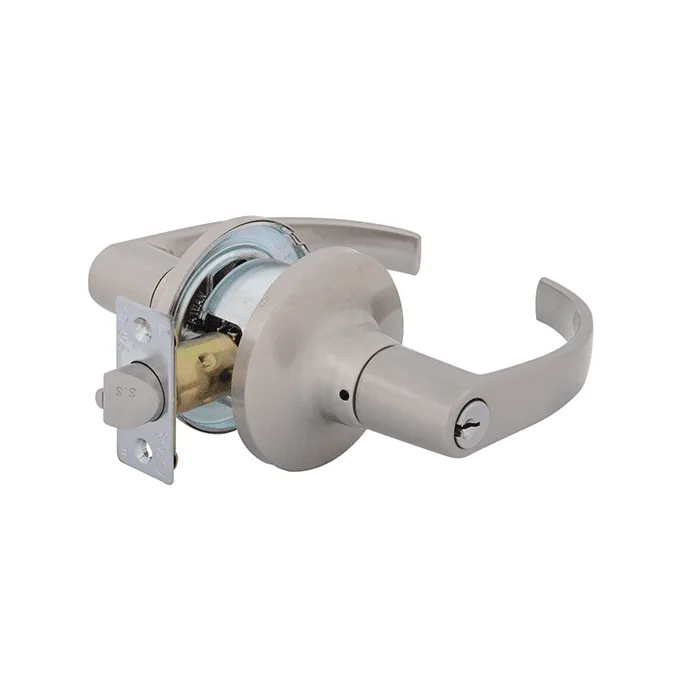

Raglan Commercial Storeroom Leverset Adj

**Features:**

– Only opened by key from the outside & always unlocked from inside

– Auto release function

– Concealed mounting screws

– Protection sleeve design

– Reversible or non-handed design

– Can accommodate security profile PD type barrel

**Functions:** Storeroom

**Grade:** 2 Commercial Tubular Leverset

**Certification:** ANSI A156.2

**Finish:** Satin Nickel

**Backset:** 60mm – 70mm Adjustable and 127mm

**Door Thickness:** 35mm – 51mm

**Door Prep:** 54mm hole and 25mm edge

**Cylinder:** 6 pin C4 Keyway – 3 keys supplied

**Rose Cover:** 75mm

**Material:** Satin Nickel pressure die cast zinc lever

**Latch:**

Faceplate – Square Corners (25.4mm x 57mm)

Bolt – Stainless Steel with Powder Metallurgy 1/2″ throw (12.7mm)

**Strike:** D Strike (28.2mm x 69.5mm x 2.0mm)

**Packaging:** Box Pack only
