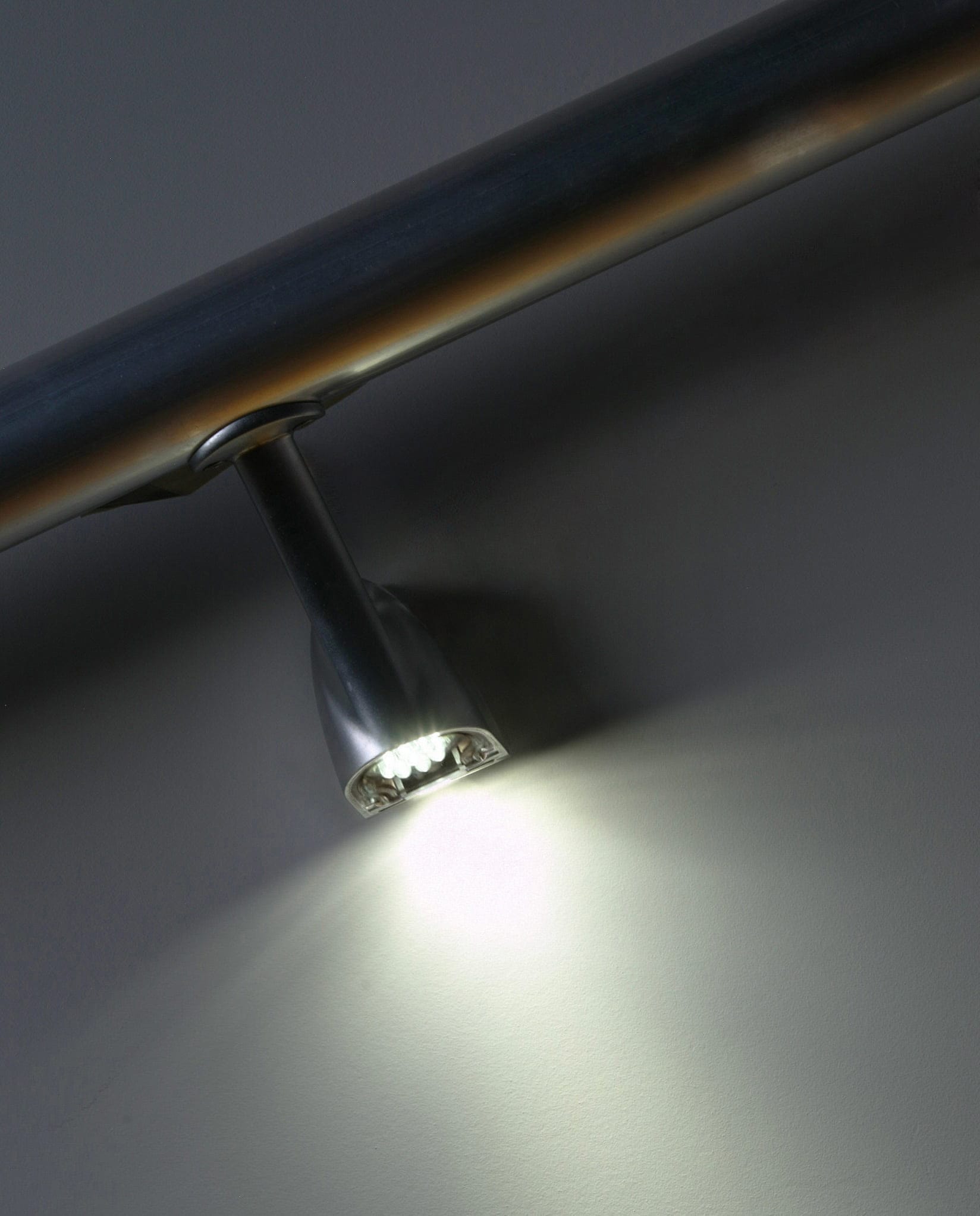

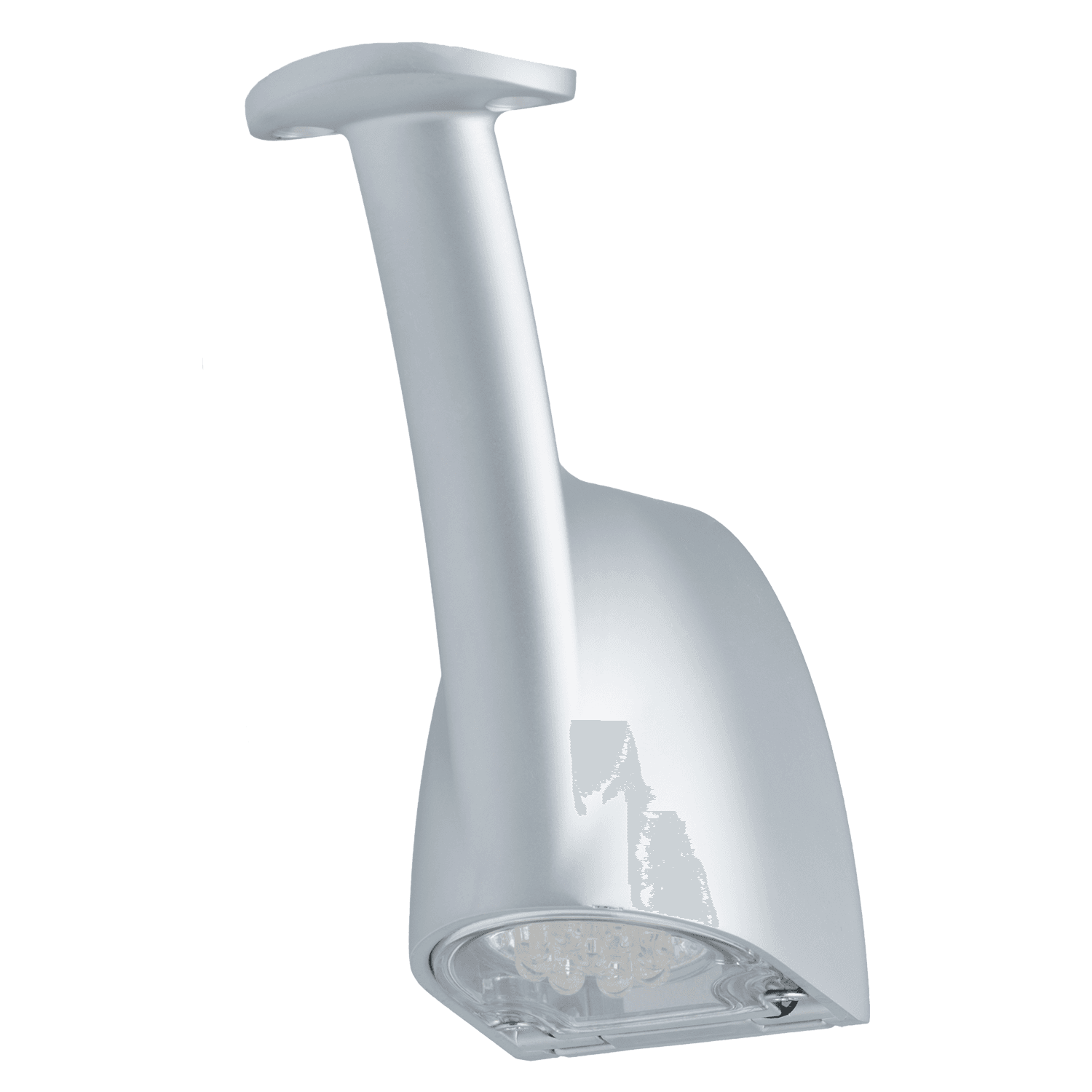

LUMOS® the revolutionary LED illuminated handrail bracket. One fitting, one solution for your stair/walkway lighting and handrail fixing. Suitable for interior/exterior domestic and commercial use. Ideal for when you would like to create a minimalistic look.
Product Features
- Modern styling
- Interior/Exterior
- Concealed fixing
- Easy installation
- Environmentally friendly: Very low power consumption (Approx 60c per annum for one light 24 hours, 365 days, based on
- 15c a unit of electricity)
- LED Bulb life approx 12 years under continuous use
- Cost savings – 1 fitting for rail and lighting
- Adapter, with locator pins, for flat profile mouldings included
- Matching style also available without light option
Technical Information
- Cold light – no heat to injure young hands
- Low level stair/walkway lighting
- Static load tested to ASTM E 985.00 and exceeds 800kg
- 12 volt regulated DC
- Light coverage area at max. height (1mtr above pitch line) 900mm Dia
- Bracket must be solid mounted
- Complies with BIA acceptable solution D1/AS1
- Potential to use for emergency lighting with appropriate equipment
- Recommend one bracket per 900mm spacing.
- Transformers supplied separately. Each transformer can power a maximum of 16 lights. Use only a Miles Nelson regulated power transformer. Failure to use a Miles Nelson regulated 12 volt DC will void warranty. Transformer tested to AS/NZS3108 @ 25oC.
Specifiers, Developers & Architects, we have a scheduling service!
Give us a call to discuss your project and see how we can add value to your project!
